CLW2-MP-1.0XH-110
1. Compact design, with coaxial light
2. Excellent imaging, suitable for various megapixel cameras
3. High contrast, low distortion and high resolution
4. the selection of adjustable iris for resolution and Dof manipulation
Inquire now
Product Description
Product parameters
Product Specifications

Information

PD No. CP-1810
PD Line CLW2 Series
Type Bi-Telecenteic Lenses

Lens Data

Mag.(x) 1.0x
WD 110±2 mm
MAX. Sensor Size 11.0 Φmm(2/3")
Field of View

1/2” (6.4x4.8) 6.4x4.8

1/1.8” (7.13x5.37) 7.13x5.37

2/3” (8.8x6.6) 8.8x6.6

F/# F7
MTF >70lp/mm
Distortion <0.1%
Telecentricity <0.1°
NA 0.07158
Resolution 7.1 μm
D.O.F 0.6 mm

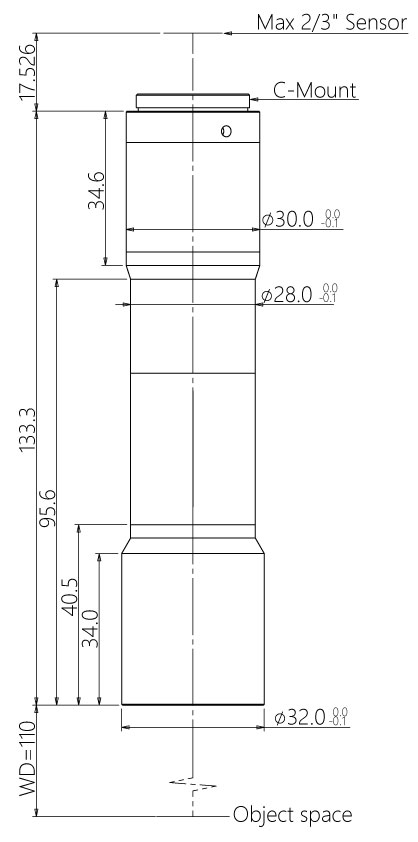

Design

Lens Mount C-mount
With Coaxial Light No
Aperture adjustment
No
Lenght 133.3 mm
Temperature -10 - 50°C(Operating),-20 - 60°C(Storage)

Telecentric lens

-->
