VT-LEM0420
VT-LEM industrial lens is a high-performance and cost-effective product designed and manufactured by machine vision based on multi-year market application feedback, professional optical lens assembly and coating process, advanced optical structure, and performance and quality similar to foreign products. Comparable, the entire series reaches 5 million optical points.
Inquire now
Product Description
Product parameters
Product Specifications

General Information:

Model Number CP-0978
Series CB Series
Type Standard FA Lens


Optical Specifications

Resolution 5 Mega Pixels
Image Size 1/1.8" CCD/CMOS
Focal length 5.0 mm
Aperture, F/# F2.0
Flange Back 17.526mm
Back Focus 8.7mm
M.O.D 0.1 m
FOV(D×H×V)

D:82.9°

H:66.5°

V:94°

TV Distortion 0.5%
TTL 55.726 mm
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max. Incident Angle NA
Coating Wavelength 400-950nm


Mechanical Parameters:

Mount C-mount
Filter Size M30.5× 0.5
Built-in ir-cut NA
Front/Rear Effective Dia. Front: Φ32.6; Rear: Φ7mm

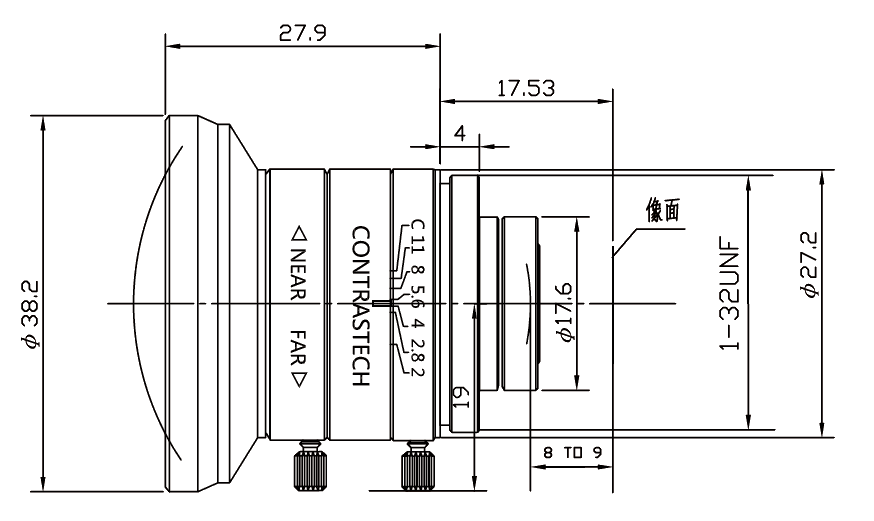

Dimension Φ38.2x27.9mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens

-->
